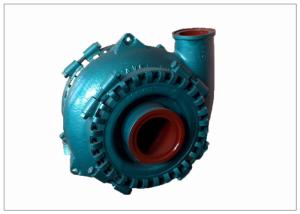

High Chrome A05 A07 Sand Gravel Pump 10/8F G Type Long Life

Place of Origin : China

Model Number : G

MOQ : one

Packaging Details : Wooden Package

Delivery Time : 30-40days

Payment Terms : TT

Supply Ability : 100 per month

Structure : Horizontal single-stage sand pump

Voltage : 380v or customized

Drive Type : V-belt,,Elastic coupling, Gear reducer

Material of parts : high chrome alloy, natural rubber

Transfering Material : Ore,Sand,Coal,Slag,Ash slurry,etc.

Customized support : OEM, ODM

Contact Now

10/8F G Type River Sand Gravel Dredging A05, A07 High Chrome Iron Cast Abrasive-Resistant Long Life Sand Gravel Pump

Product introduction:

Type G(or GH) gravel pumps are the series products introduced from Warman International Equipment Ltd. Gravel pumps are designed for continously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. Type GH pumps are of high head ones.

Main Features

1. Single stage, single case, metal liner, horizontal anti-abrasion centrifugal pump.

2. Advanced hydraulic model, CAD-aided design, high efficiency and remarkable energy-saving effect.
3. Strong flow capacity. The pump can pump gravel, high plastic clay lumps and so on.
4. Strong matching capacity. The diesel engine and the motor are both available.
5. Stable running, small vibration and low noise.
6. The whole machine has high reliability and remarkable economic benefits.

Metal Pumps Material
Part	Material	No	Part	Material
Base	Cast Iron	1	Base	Cast Iron
Shaft	4140 High Tensile Steel*	2	Shaft	4140 High Tensile Steel*
Bearing Assembly	Timken (Cast Iron Body)	3	Bearing Assembly	Timken (Cast Iron Body)
Shaft Sleeve	420 Stainless Steel	4	Shaft Sleeve	420 Stainless Steel
Pump Casing	Cast Iron	5	Pump Casing	Cast Iron
Frame Plate Liner Insert	Rubber	6	Frame Plate Liner	27% Chrome White Iron
Cover Plate Liner	Rubber	7	Volute Liner	27% Chrome White Iron
Impeller	Rubber Coated High Tensile Steel	8	Impeller	27% Chrome White Iron
Throat Bush	Rubber	9	Throat Bush	27% Chrome White Iron
Cover Plate	Cast Iron	10	Joint Rings	Rubber
Stuffing Box	Cast Iron	11	Cover Plate	Cast Iron
Expeller	27% Chrome White Iron	12	Stuffing Box	Cast Iron
Expeller Ring	Natural Rubber	13	Expeller	27% Chrome White Iron
Bolts	Zinc Plated Steel	14	Expeller Ring	Natural Rubber
O-rings	Nitrile Rubber	15	Bolts	Zinc Plated Steel
Seals	Rubber	16	O-rings	Nitrile Rubber
Seals	Rubber	17	Seals	Rubber
